3D Visualization | Oil Refinery Rendering Computer Animation

3D Industrial Rendering - Petrol / Oil Refinery Unit and Sky Horse Crane

3d visualization to simulate an engineering operation.

The 3d model of a petrol refinery unit and the Sky Horse crane was made in 1992-1993 to produce 3D renderings (static images) displaying renovation maneuver concerning the replacement of an old industrial equippament for a new one. The refinery unit was thorousghly 3D built according to the plot plan and the 30 meters high Sky Horse crane tecnical specifications. I used Autocad to build the meshes. Later on, as an experience, I produced these 3D animations using 3D Studio r.4 to render. (Hardware: 486 processor)

The 3D model of a petrol refinery unit and the Sky Horse crane was made in 1992-1993 to produce 3D renderings (static images) displaying renovation maneuver concerning the replacement of an old industrial equippament for a new one. The refinery unit was thorousghly 3D built according to the plot plan and the 30 meters high Sky Horse crane tecnical specifications. I used Autocad to build the meshes. Later on, as an experience, I produced these 3D animations using 3D Studio r.4 to render. (Hardware: 486 processor)

3D Modeling using Autocad R.11 in 1992-1993 - Some parts of the pic above was rendered using 3D Studio r.4

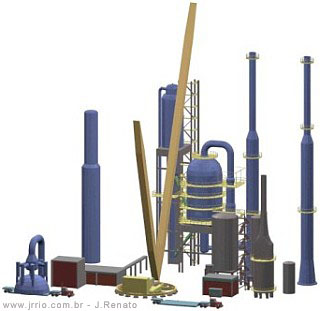

3D Model - Petrol/Oil Refinery and Sky Horse crane - 1992

3D Model - Petrol/Oil Refinery and Sky Horse crane - 1992

Non-photrealist 3D renderings of the Petrol/Oil unit and the Sky Horse crane. 3D Modeling with Autocad R.11 in 1993

Visualization: Although its a quite simple model in terms of textureing, it gives a rough idea about the engineering operation

3D Technical Animation:- Fly-by animation and objects moves in the scene. The camera moves around the 3D model and then it stop to shot the replacement of an old industrial equippament for a new one.

3D Modeling using Autocad - Sky Horse crane - 1992

3D Modeling using Autocad - Sky Horse crane - 1992

Sky Horse Crane - 3D Modeling and Rendering using Autocad R.11 - 1992-1993

3D Technical Animation: Objects moving in the scene.
I use 3D Studio r.4 to render this animations.

About the 3D Technical Animations: The animations show here had their quality reduced to enable a faster loading in the web. Ainda assim, se voce tiver conexão lenta, poderá demorar alguns minutos.

Technical Details
O Hardware utilizado foi Processador 486, num antigo AT.
A Modelagem 3D foi feita em Autocad e a animação em 3DStudio, sistema operacional DOS.
