Proposed Shopping Center in Rio - 1996 - 3D Visualization and Computer animation

Summary: It is a Video-animation produced in 1996 for a client and property owner who wanted to promote its commercial scheme regarding the renovation of an old building and turn it into a shopping center.
IThe 3D architectural model was built using autocad and rendered using the old 3D Studio r.4 for DOS. Here I describe the process I used when creating this old presentation.

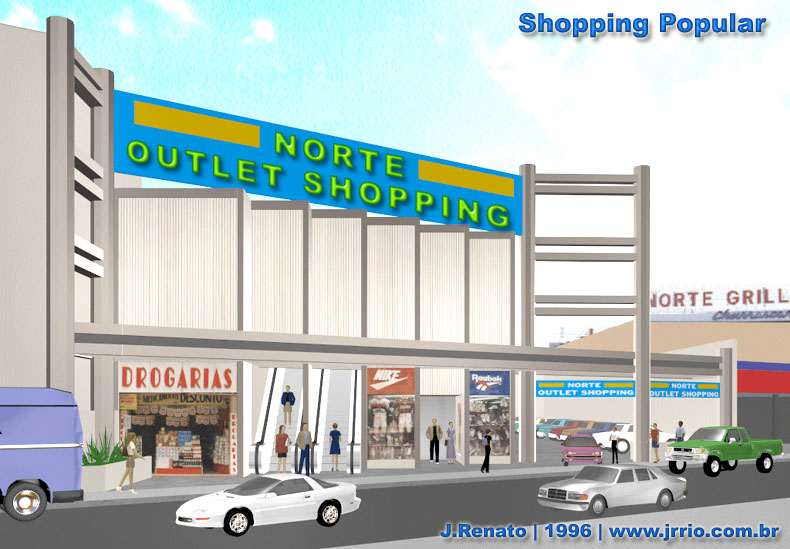

Proposed Shopping Center, in 1996 - Façade - 3D rendering

The proposed façade in comparison with the old one
Rio de Janeiro - 1996 - (Animated gif with 2 images)

3D architectural animation - Walk through the alley of shops: This had its quality reduced to enable a faster loading in the internet.

Shopping Center Location - 3D renderings - Slideshow presentation

Shopping Center Location Presentation - Slideshow

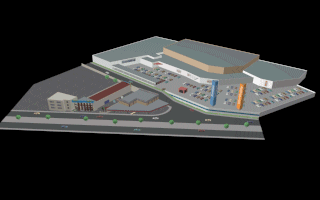

3D non-photorealistic Model - The red roof building is the building regarding the proposal. The entire model includes surrounding area and surrounding buildings and facilities. It is located at Suburbana Av. and near Norte Shopping in Rio de Janeiro City. Norte Shopping is the large facility that appear in the image of the 3D model.

3D Fly-by animatio: A camera path was made around the 3D model to simulate a fly around the building, and to give an idea of its good location in the city. It also show the 2 entrances of the small shopping center proposal.

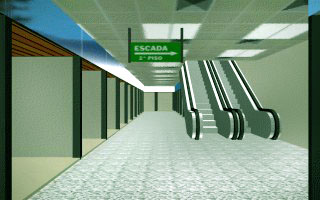

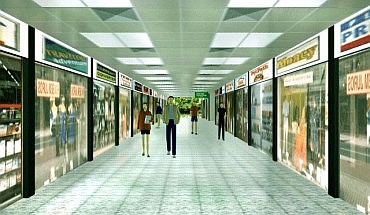

Alley of shop-units (This image was enhanced in terms of bright and contrast using Photoshop). The original file was an old .FLC file, with 256 colours.		Escalators (Rolling stair) give access the underground shops, which is below the gallery of shops shown on the left.

3D Interior Renderings of the Proposed Shop-Unit Shop-Unit: Simulation of a shop-unit (The animated gif shows 2 images). These 3D still renderings, shows the proposed shop-units with sample furniture, counter, shelfs, shop-display, plaster-ceiling decoration and spot lights.		Cutaway / 3D Section Renderings Cutaway / 3D Section of the proposed shop-unit. The animated gif alternates between 2 images. The shop-unit is shown without the left wall and the wall above the shop-display. The furniture, the technicall installations such as air-conditioning ducts and the roll front door, as long with the second floor to store goods are seen in the images.

3D Model - 3D Site Plan Rendering

3D Model & 3D Rendering - Shooping center proposal - Aerial view

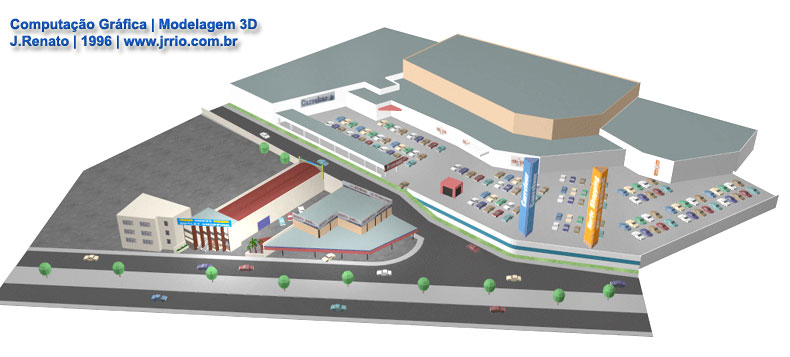

3D Model - 3D Site Plan Rendering: 3D Non-photorealistic model - The with red roof building is the one regarding the proposal. The model includes surrounding surrounding buildings and facilities. The proposed shopping center building is between a petrol/gasoline-station and a 3 storey apartment building. On the back of the main façade, It is the Norte Shopping, one of the biggest shopping center in Rio de Janeiro City.


	Proposed Shopping Center´s Façade - Rio de Janeiro 1996 Around 1996, steel facade cladding and steel corrugated facade it was not an architectural trend in Rio de Janeiro city. However, this architectural trend was present in Europe and in some Norman Foster´s designs. It was that architectural trend that inspired myself to design this shopping center façade.

Type of 3D Animation: Animação de câmara e objetos. Foi feita caminhada interna e simulação de vôo em torno do projeto.

Type of Midia: Para apresentação e demonstração do ante-projeto utilizando video-cassete (VHS) não profissional.

Hardware: Processador 486
